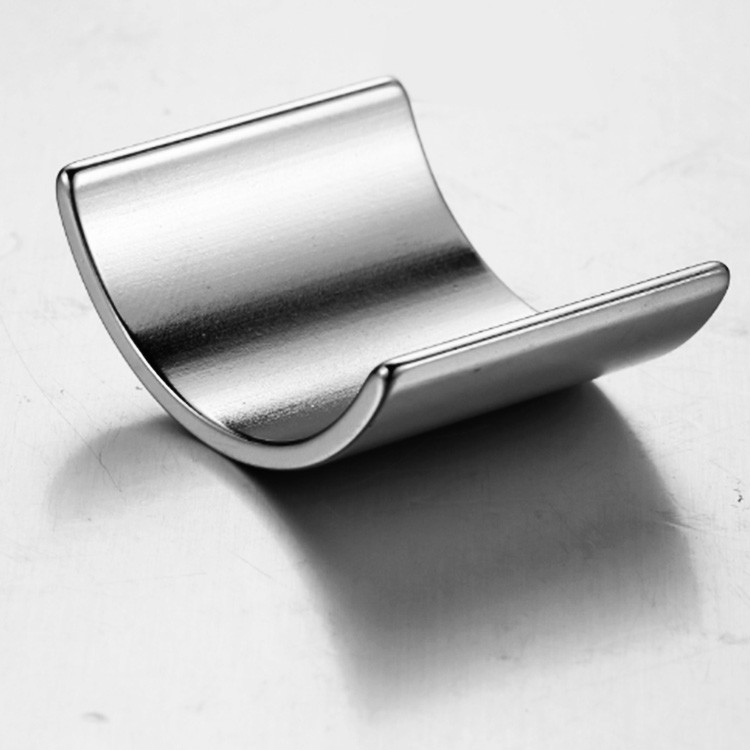

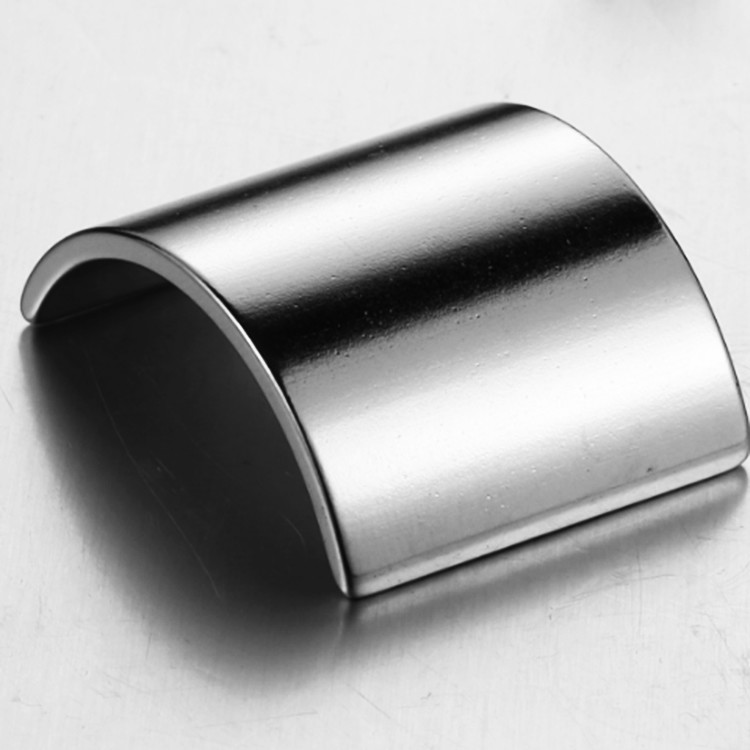

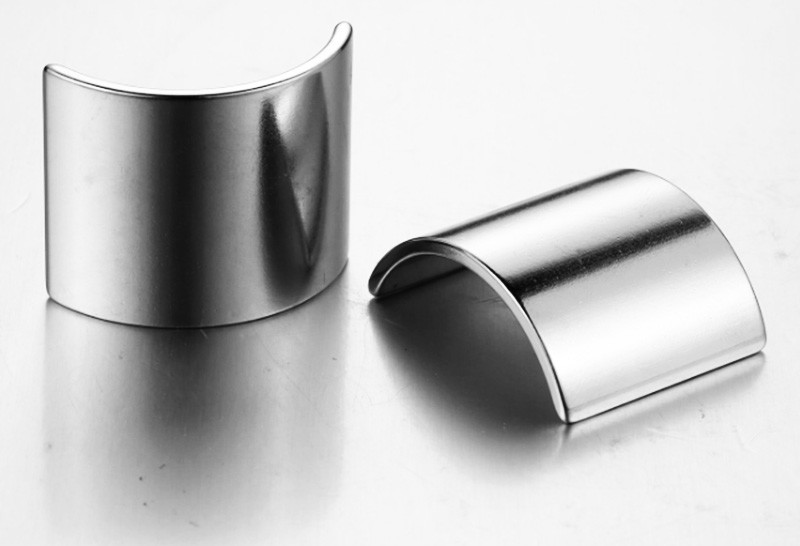

Imanes sinterizados del arco del neodimio de N35 NdFeB para la forma multi del motor
Key Attributes
Product Summary
El imán del neodimio sinterizó el imán del Arco-segmento de NdFeb para el motor N35 DESCRIPCIÓN DE PRODUCTOS Los imanes sinterizados de NdFeB son el hoy disponible comercializado más potente de los imanes permanentes, con el producto máximo de la energía extendiéndose a partir del 26 MGOe a 55 MGOe. ...
Product Details
Imanes del arco del neodimio N35
,Imanes sinterizados del arco del neodimio
,Imanes del segmento del arco de NdFeB
El imán del neodimio sinterizó el imán del Arco-segmento de NdFeb para el motor N35
DESCRIPCIÓN DE PRODUCTOS
Los imanes sinterizados de NdFeB son el hoy disponible comercializado más potente de los imanes permanentes, con el producto máximo de la energía extendiéndose a partir del 26 MGOe a 55 MGOe. El Nd-FE-b es la tercera generación de imán permanente desarrollada en los años 80. Tiene una combinación de remanencia y de coercivity muy altos, y viene con una amplia gama de grados, de tamaños y de formas. Con sus características magnéticas excelentes, la materia prima abundante y los precios bajos relativamente, Nd-FE-b ofrece más flexibilidad en el diseño de nuevo o substituye los materiales tradicionales del imán tales como de cerámica, aleación de acero y SM-Co para alcanzar eficacia alta, bajo costo y dispositivos más compactos.
Propiedades magnéticas de los imanes sinterizados de NdFeB
| Artículo | Grado | Remanencia; | Coercivity; | Fuerza del Coercivity; | Producto máximo de BH; | Funcionamiento | ||||||||
| Br | HcB | HcJ | (BH) máximo | Temporeros. | ||||||||||
| Kilogramos | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m | °C | ||||||
| Máximo. | Mínimo. | Máximo. | Mínimo. | Máximo | Mínimo. | Máximo. | Mínimo. | |||||||
| N | N40 | 13,2 | 12,6 | 1,32 | 1,26 | ≥10.5 | ≥836 | >=12 | >=954 | 42 | 38 | 334 | 289 | ≤80 |
| N42 | 13,5 | 12,9 | 1,35 | 1,3 | ≥10.5 | ≥836 | >=12 | >=954 | 44 | 40 | 350 | 318 | ≤80 | |
| N45 | 13,8 | 13,2 | 1,38 | 1,32 | ≥10.5 | ≥836 | >=12 | >=954 | 46 | 42 | 366 | 334 | ≤80 | |
| N48 | 14,2 | 13,7 | 1,43 | 1,37 | ≥10.5 | ≥836 | >=11 | >=876 | 49 | 45 | 390 | 358 | ≤80 | |
| N50 | 14,5 | 14,0 | 1,45 | 1,4 | ≥10.5 | ≥836 | >=11 | >=876 | 51 | 47 | 406 | 374 | <> | |
| N52 | 14,8 | 14,4 | 1,48 | 1,44 | ≥10.5 | >=836 | >=11 | >=876 | 53 | 49 | 422 | 390 | <> | |
| N55 | 1,52 | 14,6 | 1,52 | 1,46 | ≥9.0 | >=716 | ≥11.0 | >=876 | 56 | 52 | 446 | 414 | <> | |
| M | N38M | 12,8 | 12,3 | 1,3 | 1,23 | ≥11.6 | >=915 | >=14 | >=1114 | 40 | 36 | 318 | 287 | <> |
| N40M | 13,2 | 12,6 | 1,32 | 1,26 | ≥11.8 | >=939 | >=14 | >=1114 | 42 | 38 | 334 | 289 | <> | |
| N42M | 13,5 | 12,9 | 1,35 | 1,3 | ≥12.0 | >=955 | >=14 | >=1114 | 44 | 40 | 350 | 318 | <> | |
| N45M | 13,8 | 13,2 | 1,38 | 1,32 | ≥12.5 | >=994 | >=14 | >=1114 | 46 | 42 | 366 | 334 | <> | |
| N48M | 14,2 | 13,7 | 1,42 | 1,37 | ≥12.8 | >=1018 | >=14 | >=1114 | 49 | 45 | 390 | 358 | <> | |
| N50M | 14,5 | 14 | 1,45 | 1,4 | ≥13.1 | >=1042 | >=11 | >=1114 | 51 | 47 | 406 | 374 | <> | |
| H | N35H | 12,5 | 11,8 | 1,25 | 1,18 | ≥11.0 | >=875 | >=17 | >=1353 | 37 | 33 | 295 | 263 | <> |
| N38H | 12,8 | 12,3 | 1,3 | 1,23 | ≥11.6 | >=915 | >=17 | >=1353 | 40 | 36 | 318 | 287 | <> | |
| N41H | 13,2 | 12,6 | 1,32 | 1,26 | ≥11.8 | >=939 | >=17 | >=1274 | 42 | 38 | 334 | 302 | <> | |
| N44H | 13,7 | 13 | 1,37 | 1,3 | ≥12.1 | >=963 | >=16 | >=1274 | 45 | 41 | 358 | 326 | <> | |
| N46H | 13,8 | 13,2 | 1,38 | 1,32 | ≥12.2 | >=971 | >=16 | >=1274 | 47 | 43 | 374 | 342 | <> | |
| N48H | 14,2 | 13,7 | 1,42 | 1,37 | ≥12.7 | >=1011 | >=16 | >=1274 | 49 | 45 | 390 | 358 | <> | |
| Envío y dirección | N35SH | 12,5 | 11,8 | 1,25 | 1,18 | ≥11.0 | >=876 | >=20 | >=1592 | 37 | 33 | 295 | 263 | <> |
| N39SH | 13 | 12,3 | 1,3 | 1,23 | ≥11.6 | >=923 | >=20 | >=1592 | 40 | 36 | 318 | 287 | <> | |
| N42SH | 13,2 | 12,9 | 1,32 | 1,26 | >=11.8 | >=939 | >=20 | >=1592 | 42 | 38 | 334 | 302 | <> | |
| N44SH | 13,7 | 13 | 1,37 | 1,3 | >=12.1 | >=963 | >=20 | >=1592 | 45 | 41 | 358 | 326 | <> | |
| N46SH | 13,8 | 13,4 | 1,38 | 1,34 | >=12.5 | >=965 | >=20 | >=1592 | 47 | 43 | 374 | 342 | <> | |
| UH | N33UH | 12,2 | 11,4 | 1,22 | 1,14 | >=10.7 | >=851 | >=25 | >=1990 | 35 | 31 | 279 | 2247 | <> |
| N35UH | 12,5 | 11,8 | 1,25 | 1,18 | >=11.0 | >=875 | >=25 | >=1990 | 37 | 33 | 295 | 263 | <> | |
| N38UH | 13 | 12,3 | 1,3 | 1,23 | >=11.6 | >=915 | >=25 | >=1990 | 40 | 36 | 318 | 287 | <> | |
| N40UH | 13,2 | 12,6 | 1,32 | 1,26 | >=10.5 | >=836 | >=25 | >=1990 | 42 | 38 | 334 | 289 | <> | |
| EH | N30EH | 11,7 | 10,9 | 1,17 | 1,09 | >=10.2 | >=812 | >=30 | >=2388 | 32 | 28 | 255 | 223 | <> |
| N33EH | 12,2 | 11,4 | 1,22 | 1,14 | >=10.7 | >=851 | >=30 | >=2388 | 35 | 31 | 279 | 2247 | <> | |
| N35EH | 12,5 | 11,8 | 1,25 | 1,18 | >=11.0 | >=875 | >=30 | >=2388 | 37 | 33 | 295 | 263 | <> | |
| N38EH | 13 | 12,2 | 1,3 | 1,22 | >=11.5 | >=915 | >=30 | >=2387 | 40 | 36 | 318 | 287 | <> | |
| AH | N28AH | 11 | 10,4 | 1,1 | 1,04 | >=9.70 | >=772 | >=35 | >=2786 | 29 | 26 | 231 | 207 | <> |
| N30AH | 11,7 | 10,8 | 1,17 | 1,08 | >=10.2 | >=812 | >=35 | >=2786 | 32 | 28 | 255 | 223 | <> | |
| N33AH | 12,2 | 11,4 | 1,22 | 1,14 | >=10.7 | >=851 | >=35 | >=2786 | 35 | 31 | 279 | 247 | <> | |
| N35AH | 12,5 | 11,7 | 1,25 | 1,17 | >=11.0 | >=876 | >=35 | >=2386 | 37 | 33 | 295 | 263 | <> | |
